Features:
1. Use Super bright 3528 SMD LED as lighting source
2. 1200PCS LED / 5 Meters
3. Size:5000X10mm
4. Available Color: Cool White / Warm White/Nature White / Red / Green / Blue / Yellow
5. Input Voltage DC12V or 24V
6. Max power:19.2W/m
7. Can be cut by 3 SMD LED (DC12V) and 6 SMD LED (DC24V)
8. With original 3M adhesive tape back, easy for installation
9. Non-waterproof, IP54, IP65 and IP67 are available
Specifications:
|
Part Number |
Color |
Flux(LM) |
λ(Nm)/(CT:K) |
Power |
LED Qty |
CRI/RA |
IP Grade |
|
LA-FA-3528-CW-1200 |
Cool White |
1200x8.0LM |
6000-6500K |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-NW-1200 |
Nature White |
1200x8.0LM |
4000-4500K |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-WW-1200 |
Warm White |
1200x7.0LM |
2600-2800K |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-R-1200 |
Red |
/ |
620-630nm |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-G-1200 |
Green |
/ |
520-525nm |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-B-1200 |
Blue |
/ |
465-470nm |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |
|
LA-FA-3528-Y-1200 |
Yellow |
/ |
588-593nm |
19.2w/m |
240pcs/m |
80/90/97 |
IP20/54/65/67 |

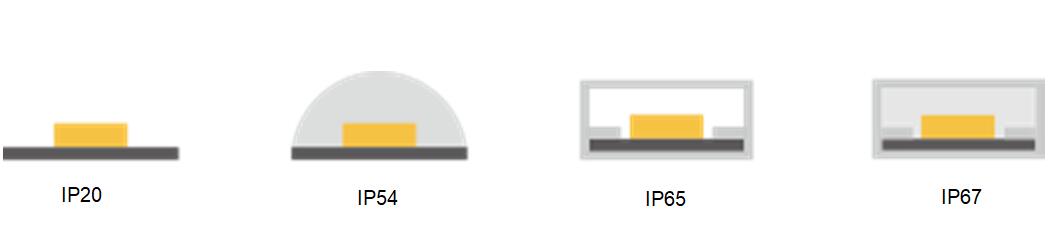

IP20: Non-waterproof; IP54: Single side with glue; IP65: With Silicone Tube; IP67: Silicone Tube + Silicone Glue
Application:
1. Architectural lighting for window ,archway ,canopy and corridor.
2. Decorative lights for holiday, event, showing, exhibition.
3. DIY light for home use.
4. Backlight or edge lighting for sign.
