DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.

Technical Parameters

● Working temperature: -20-60 ℃

● Supply voltage: 5V～24VDC

● Output: 4 channels

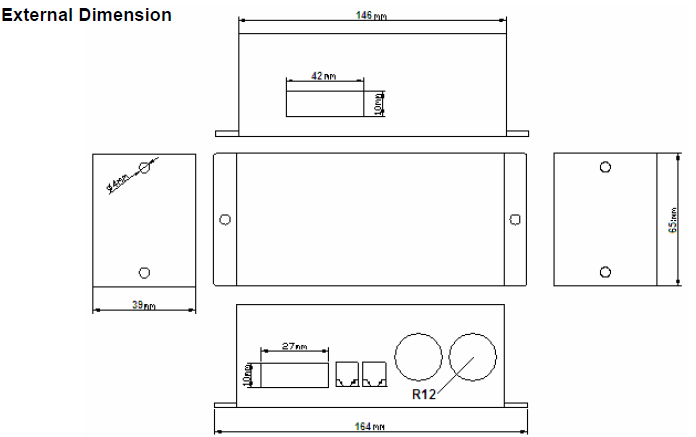

● External dimension: L165ΧW68ΧH40（mm）

● Packing size: L180ΧW95ΧH60（mm）

● Net weight: 320g

● Gross weight: 355g

● Static power consumption: <1W

● Output current: each channel 4A

● Output power: 5V<80 W, 12V<192W,24V<384W
