Name: Controllers & Dimmers
Product Name: RGB Amplifier
Part No.: LA-AMP-A
Technical parameters
● working temperature: -20-60℃
● supply voltage: DC5V, 12V ,18V, 24V optional（Specify the required voltage on order form）
● output: 3 channels
● connection mode: common anode

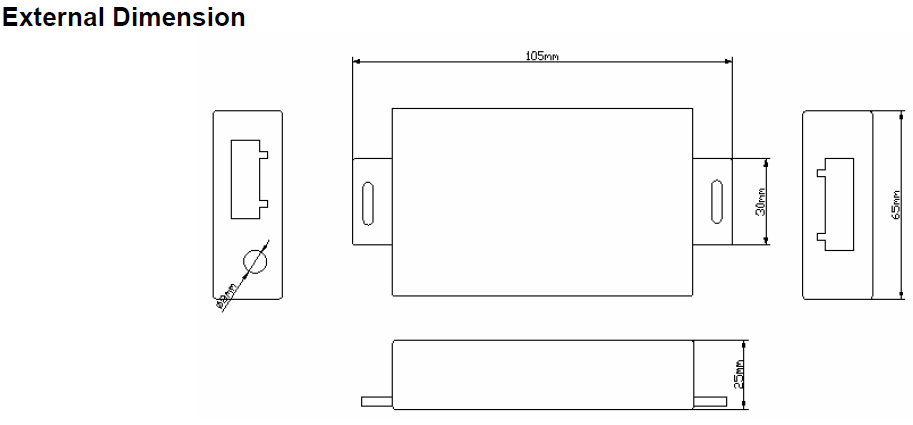

● external dimension:L105ΧW65ΧH25mm
● packing size: L122ΧW85ΧH42mm
● net weight: 115g
● gross weight: 145g
● static power consumption: <1W
● output current:<4A(each channel)
● output power: 5V:<60W, 12V:<144W, 24V:<288W
